Application:Professional for cutting metal tube
Applicable Materials:To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.
Applicable industry:
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

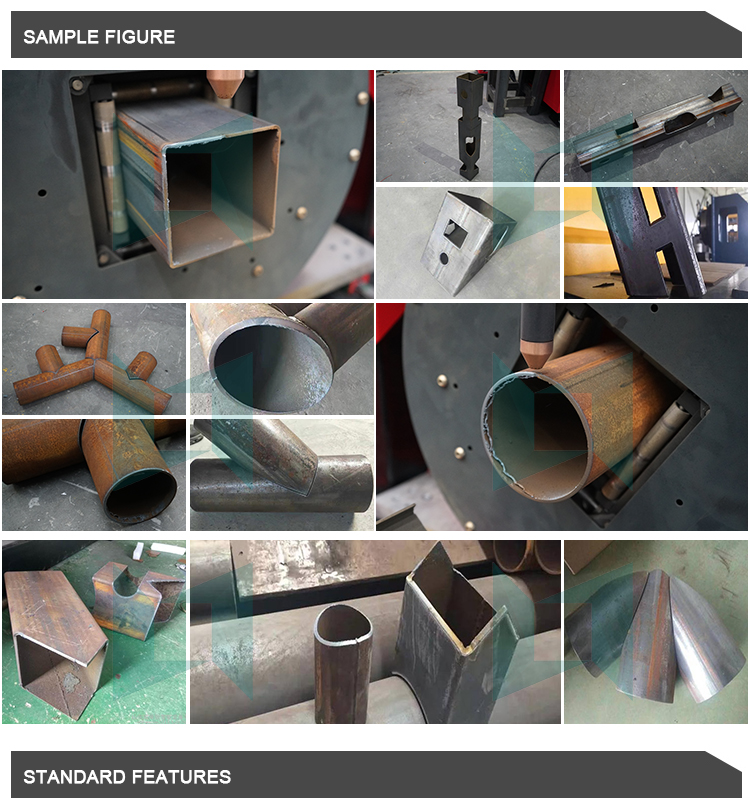

1. This machine is used for metal square&round tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.
2. The liner rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.
3. LCD operate panel can prompt kinds of operating ways, so operator can operate it easily after simple training.
4. Driving system is Leadshine servo drive (Dual Driber makes it fastly), you can choose China LEADSHINE , Japan Panasonic /YASKAWA servo motor or stepper motor to make sure whole machine can run with smoothly in a wider speed range, short acceleration time
5. Torch height controller can adjust the best cutting distance automatically, to confirm working piece high precision cutting.
6. Automatic Chunk rotary makes work efficiency.
| No. | Description | LXP6020T（Length is 6000mm,Diameter is 100-400mm） |
| 1 | Working Size | 200(Diameter)*6000mm(Length) |
| 2 | Z Axis Clearance | 150mm(200 And Higher Is Optional) |
| 3 | Table Type | Chuck rotary (Automatic + Dual Driver) |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Leadshine Servo motor( YASKAWA/PANASONIC is optional ,also according to your needs and budget.) |
| 6 | Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |
| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Jiaoda fangling |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm(This is approximate,It also according to power and kinds metal) |
| 13 | Operating System | JiaoDa fangling FX430A controller(Professional for tube cutting) |
| 14 | Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal square tube/Circle tube |
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed
free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2:2 I don’t know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:choose most suitable Power .
3) Business industries:We sell a lot and give advice on this business line.
Q3:Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don’t know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual
update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge
The problem elsewhere will be solved by us. We can provide team viewer
/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door
service if you need.
