HOW laser rust removal tool WORK
* Powerful, very short, rapid and moving laser pulses produce micro-plasma bursts, shock waves and thermal pressure resulting in sublimation and ejection of the target material.
* A focused laser beam precisely vaporizes the target coating or contaminant.
* Process optimization of the laser beam produces maximum reaction with the target material for speed while, at the same time,does so safely and without harm to the base material.
* Metal surfaces are well-suited for many laser cleaning applications. Optimized beam settings will not metallurgically change or damage the laser treated surface. Only the coating, residue or oxide targeted for removal is affected as the laser beam is precisely adjusted not to react with the underlying metal surface.
* Laser beam power density is accurately and easily adjusted to achieve cleaning results impossible with all other options.

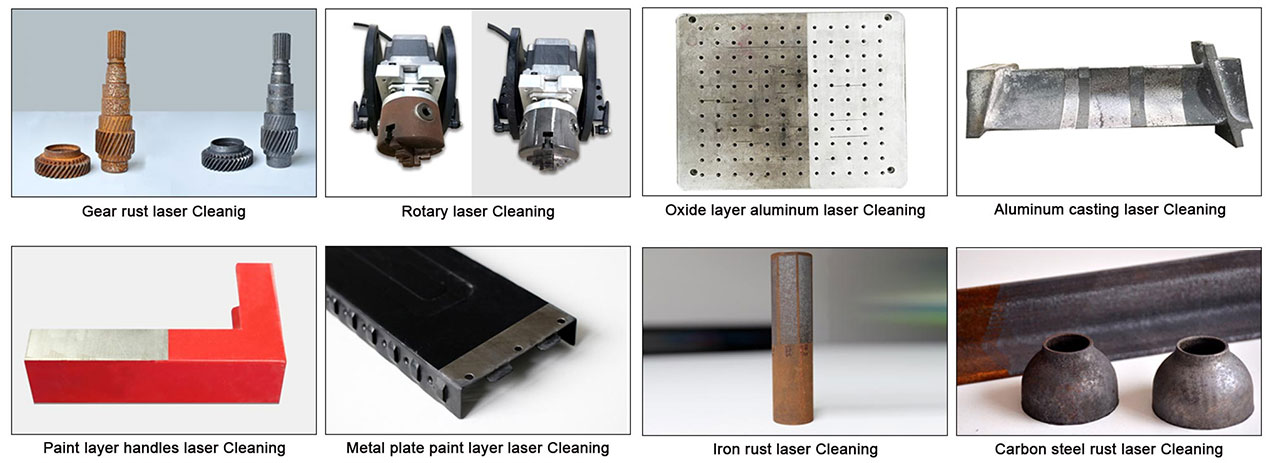

Application of laser rust removal
A Metal surface cleaning
B Removal paint of metal surface
C stains cleaning on the surface
D Surface coating cleaning
E Pretreatment of welding surface cleaning
F Stone surface cleaning
G Rubber mold residue cleaning
Ship Industry,auto Parts, rubber Mold, high-end Machine,tire molde track,environmental Protection Industry and others.
Features of rust clean laser
* No damage to parts
* High efficiency, saving time
* Quick setup
* Simple interface operation
* Hand-held design is easy to carry
* No chemical required, safe and environmentally friendly
* No additional consumables are generated during cleaning

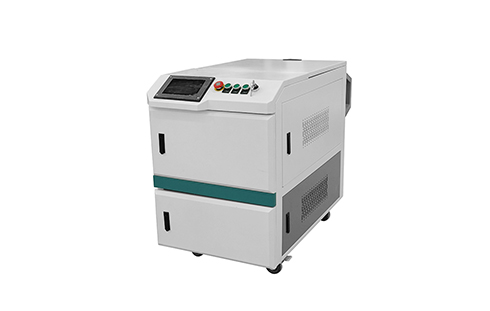

Equipment model | LXC-50W | LXC-100W | LXC-200W | LXC-350W | LXC-500 | LXC-1000 |
Laser working medium | Yb-doped fiber | |||||
Laser power | 50W | 100W | 200W | 350W | 500W | 1000W |
Laser wavelength | 1064nm | |||||
Pulse frequency | 20-100KHz | 20-100KHz | 20-200KHz | 20-50KHz | 20-50KHz | 20-50KHz |
Cooling method | Air cooling | Air cooling | Air/Water cooling | Water cooling | ||
Dimension | 700x1250x1030mm (About) | |||||
Total Weight | 50kg | 150kg | 175kg | 175kg(Including Water tank) | 200kg(Including Water tank) | 200kg(Including Water tank) |
Total power | 350W | 600W | 1000W | 1400W | 1800W | 2000W |
Scan width | 10-60mm | |||||
Optional | Hand/automatic | |||||
Working temperature | 5-40℃ |
