Application:
The CCD function make round precision edge cutting more fast and more accurate.If your work similar this ,i recommend you CCD model. Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board，rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.
Work Samples
Features:
The CCD function make round precision edge cutting more fast and more accurate. If your work similar this, i recommend you CCD model
1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Working Principle
Technical Parameter

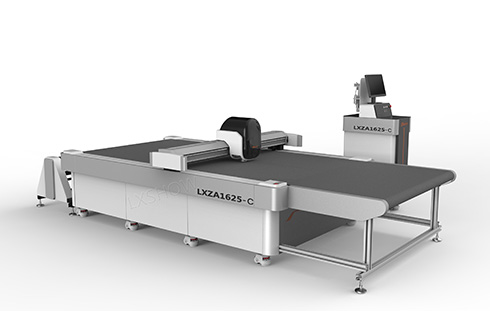

| Model | LXZ1625 | LXZ1618(1325optional) | LXZA1625-C |
| Working area | 1600×2500mm | 1600*1800mm | 2500×1600mm |
| Machine size (mm) | 3450×2300×1250 | 2650*2300*1250 | 3600×2300×1250 |
| Rated power | 11KW | 11KW | |
| Fixed mode | flat plate table | Auto feeding type table | |
| Multifunctional head | Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function. | ||
| Tool configuration | Multiple cutting knives | ||
| Safety device | Using infrared sensors, responsive, safe and reliable. | ||
| translational velocity | 800-1200mm/s | ||
| Cutting speed | 200-800mm/s(according to different cutting materials) | ||
| Cutting thickness | ≤22mm(according to different cutting materials) | ||
| Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber | ||
| Repeated accuracy | ≤0.1mm | ||
| Capacity | 2GB | ||
| Transmission system | imported(Digital servo motor, linear guide, synchronous belt, ball screw) | ||
| Instruction system | HP-GL compatible format | ||
| Voltage | 380V±10% | ||
| Other configuration | Japanese Yaskawa servo motor, Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump | ||
