Difference of 20w 30w 50w 100w 120w Fiber laser marking power (laser generator)
20w fiber laser marking machine:for surface marking
The most hot selling system by lowest price advantage.
Especially on plastic and hard metals, it occurs perfect results.
Auto motive, packing, kitchenware equipment, hand tools sectors are main ways preferred on 20W.
30w fiber laser marking machine:for faster surface marking and deep engraving
Suitable for job shops and people who needs more power.
30w can meet most of users requirements.
50w fiber laser marking machine:for deep engraving and jewelry cutting. With the price lower on fiber laser marking ,50W is more and more popolar. 4000 USD about can buy 50W fiber laser marking machine .
Do deep engraving, micro cutting, marking and 3D engraving perfect.One upper level then marking towards cutting.
Especially for cutting, this is the first machine fits your requirement to cut.
Mostly preferred by jewelry sector, F 50 creates 40% more effective results according to its competitors. One of the fastest model in market.
100W 120W has more effective and fast speed. You can choose according to your budget.
1).Long lifetime, over 100,000 hours.
2).Compact laser source with air cooling.
3).2 to 5 times more productive a traditional laser marker or laser engraver.

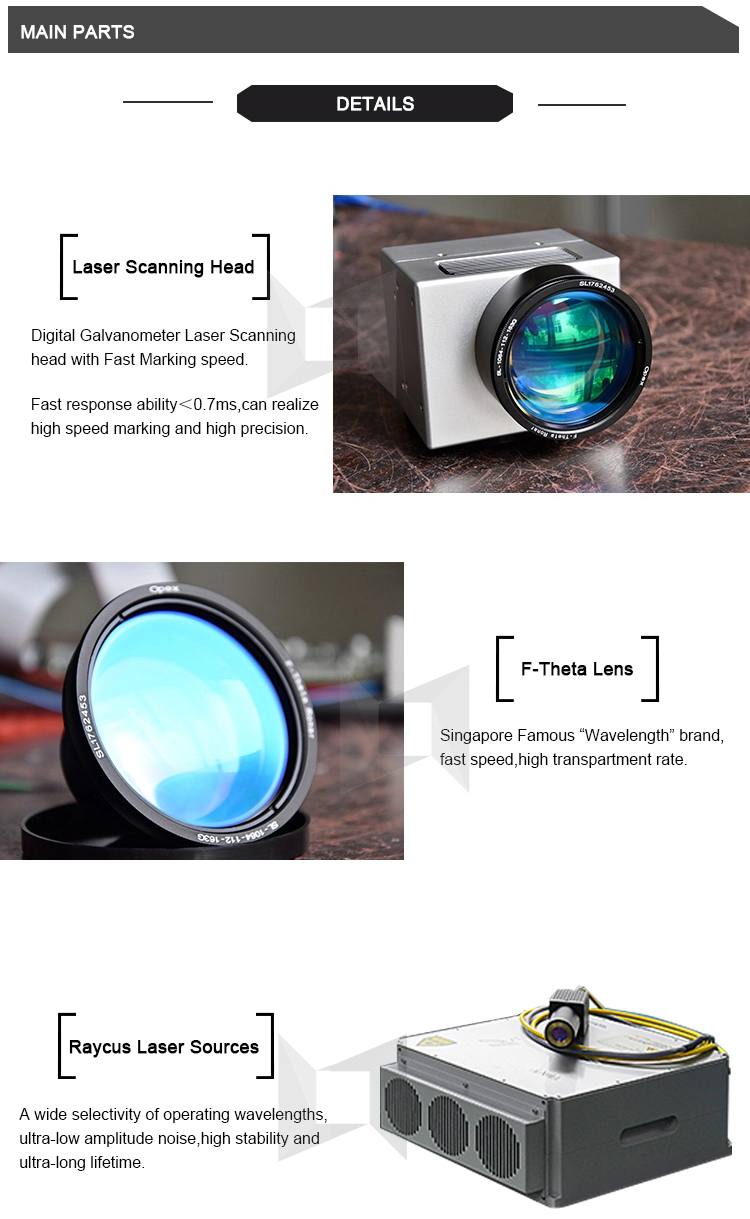

4).Super quality galvanometer scanning system.
5).High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6).More stable performance.
7).Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
8).Output power is stable, optical mode is good, beam quality is excellent.
9).Marking speed is fast, efficient, and high accuracy.
10).Appearance is professional, operation is easy.
| Technical parameter | |

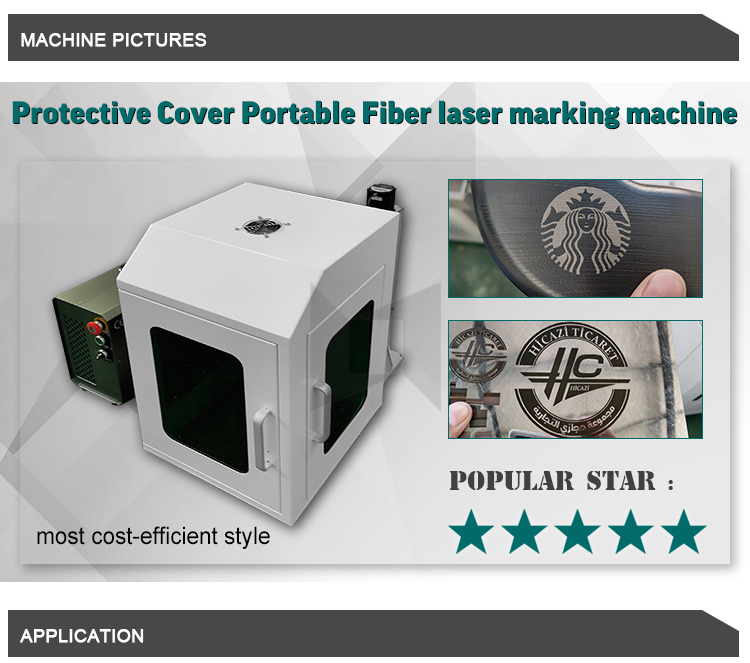

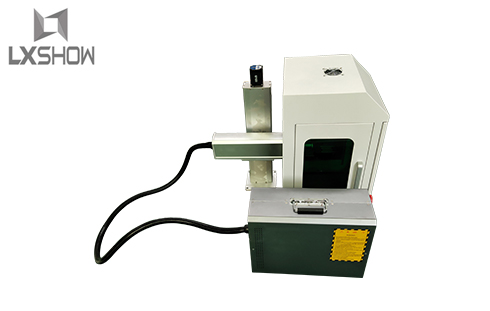

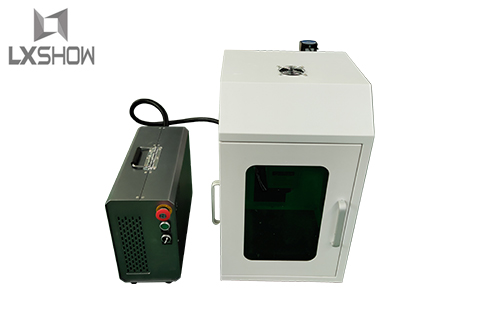

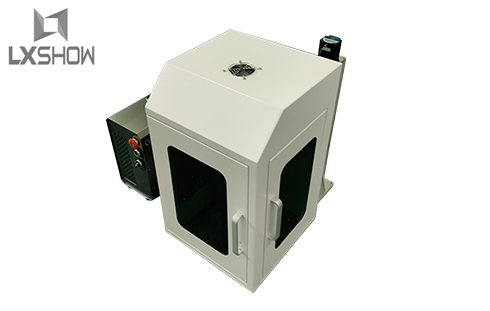

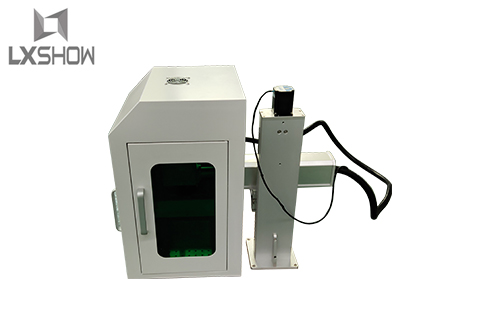

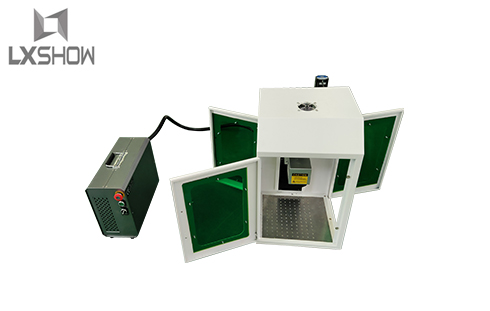

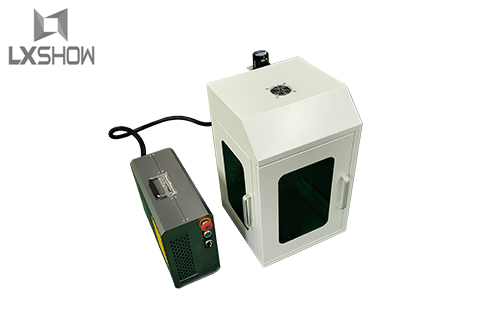

| Item / Model | LXF-20/30/50/60/70/100/120WProtective cover Portable (Split Style) Fiber laser marking machine |
| Laser source | Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color/3D marking for optional) |
| Laser power | 20w, 30w, 50w,60w ,70w,100,120w |
| Laser type | Fiber laser |
| Graphic Format Supported | DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO, |
| Marking speed | ≤8000mm/S |
| Max.Marking Depth | ≤0.4mm |
| Laser Wavelength | 1064nm |
| Marking lines | 0.06-0.1mm |
| Minimum line width | 0.06mm |
| Minimum character | 0.15mm |
| Resolution ratio | 0.01mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | TAJIMA, CorelDraw, Photoshop, AutoCAD |
| Equipment Dimensions | 940*980*540mm(different model has different size,detailed can be confirmed with sellers) |
| Net Weight: | 91kg(different configuration has small difference) |
| Unit Power | ≤500W |

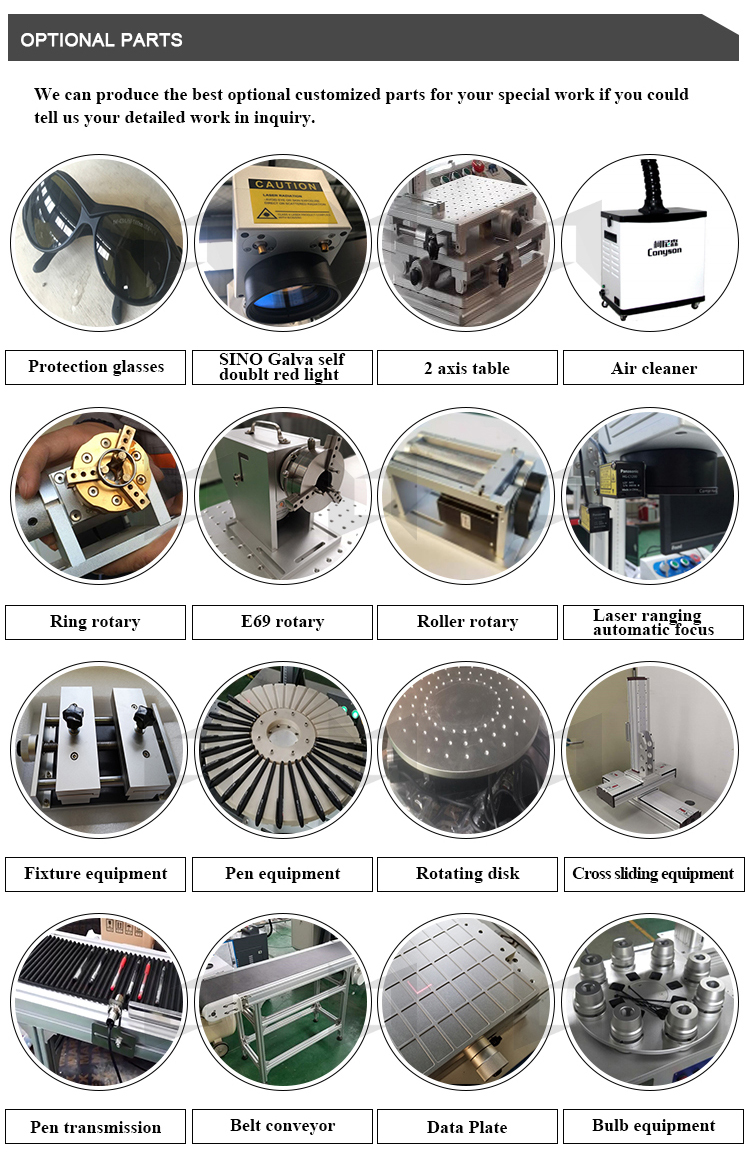

| Optional Spare Parts | Rotary/Protection glasses/outside red light/night light and other optional customized parts and so on. |
