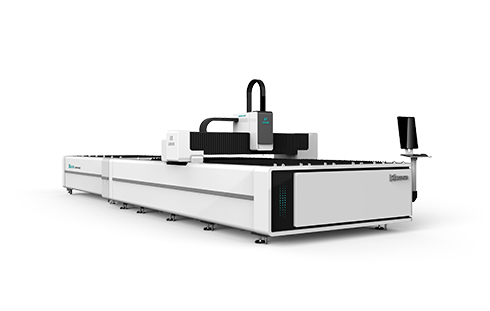

[LXF1530J]1500W 2200W 3300W Metal Plate Fiber Laser Cutting Machine with Exchange Table LXF3015J

Inquire Now Next Product

MACHINE FEATURES

1500W 2200W 3300W Metal Plate Fiber Laser Cutting Machine with Exchange Table LXF3015J

Applied materials:

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industry:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

1	Machine Name	1500W 2200W 3300W High Power Metal Plate Fiber Laser cutting machine with exchange table LXF3015J
2	Model	LXF3015J
3	Laser machine cutting area	3000x1500mm(Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)
4	Fiber Laser PowerCO2 Laser Power	500w/750w/1000/1500/2200/3300/4000/6000/8000/12000/25000W(More suitable for >=1500W)
5	Laser wave length	1064nm
6	Transmission system	Gear + rails(we have standard brand,we can also produce as your requirements)
7	X.Y axis location accuracy	±0.01mm
8	X.Y axis repeat location accuracy	±0.01mm
9	X.Y axis max moving speed	30m/min
10	Max cutting speed	1--30m/min(it will according to metal material and laser power and machine configuration)
11	Cutting thickness	Detailed in the following cutting thickness
12	Application Material	Metal sheetIron/CS/SS/Aluminum/Copper and all kinds metal
13	Advantages	>Excellent beam quality >Simple , compact, electrically and optically efficient >Compatibly powerful and reliable >Maintenance free >multilingual, more than 11 foreign languages >3 years warranty .
14	Gross weight	7000KG
15	Net weight	6750KG
16	Machine size	Exchange table Machine size:520030002400mmWater chiller +Controller:18309202110mm
17	Transport	Shell frame for Exchange table Machine 20 Container for Water chiller +Controller

1500W 2200W 3300W Metal Plate Fiber Laser Cutting Machine with Exchange Table LXF3015J

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Carbon Steel(O₂)	1	7.0~8.0	7.0~9.0	7.0~11.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0
	2	4.0~5.0	5.0~6.0	5.0~6.5	5.0~6.5	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0
	3	2.0~2.5	2.5~3.0	2.8~3.8	3.0~4.6	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0
	4	1.5~2.0	2.0~2.4	2.5~3.2	2.8~4.0	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2
	5	1.2~1.5	1.5~1.8	1.8~2.5	2.2~3.2	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6
	6	1.0~1.4	1.4~1.6	1.6~2.2	2.0~2.8	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0
	8		1.0~1.2	1.1~1.5	1.4~2.0	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4
	10		0.75~0.85	1.0~1.2	1.1~1.4	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8
	12		0.6~0.7	0.9~1.0	0.9~1.2	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5
	16				0.6~0.75	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
	20					0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75
	22					0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65
	25					0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Stainless Steel(N₂)	1	10~12	15~18	10~15	35~50	45~55	45~55	45~55	45~55	45~55	45~55
	2	2~4.0	4.5~6.0	5.0~7.0	10~15	15~23	18~27	20~35	23~37	26~40	28~43
	3	0.7~2.0	2.0~2.4	3.0~4.0	5.0~7.0	7.0~11.0	10~15	15~20	19~24	23~28	27~32
	4		1.0~1.5	2.0~2.8	3.5~4.5	4.0~6.0	5.0~7.5	10~14	14~17	18~22	22~26
	5		0.75~0.85	1.2~1.7	1.8~2.5	2.5~4.0	4.0~5.0	8.0~12.0	11~14	14~17	16~18
	6			0.7~1.0	0.7~0.8	2.0~3.2	3.0~4.0	6.0~8.0	8.0~9.5	9.5~11.0	10.5~12.0
	8			0.5~0.7	0.5~0.6	1.2~1.8	1.5~2.6	3.5~4.0	5.0~5.5	6.5~7.0	7.5~8.0
	10					0.7~0.9	0.7~1.3	1.8~2.2	2.5~3.0	3.4~3.9	4.0~4.5
	12					0.3~0.4	0.4~0.6	1.2~1.5	1.8~2.1	2.6~3.1	3.3~3.6
	16						0.3~0.5	0.8~1.2	1.5~1.8	2.2~2.5	2.7~3.0
	20						0.3~0.5	0.6~0.8	1.0~1.3	1.7~2.0	2.2~2.5
	22							0.3~0.4	0.6~0.75	1.0~1.2	1.4~1.6
	25								0.3~0.5	0.4~0.6	0.6~0.8

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Aluminum (N₂)	1			10~15	30~45	30~38	35~40	45~55	45~55	45~55	45~55
	2			5.0~6.0	10~15	12~16	13~22	20~30	27~35	33~40	36~43
	3			2.5~3.5	5.0~7.0	6.5~8.0	7.0~13	13~18	15~18	18~22	23~26
	4			1.4~2.0	3.5~5.0	3.5~5.0	4.0~5.5	10~12	12~13.5	15~18	19~22
	5			0.8~1.0	2.0~3.0	2.5~3.5	3.4~4.0	5.0~8.0	9.0~12	14~16	17~19
	6			0.5~0.6	1.5~2.0	1.8~3.0	2.2~3.5	4.0~6.0	7.5~9.5	10~12.5	13~15
	8				0.5~0.6	0.9~1.3	0.9~1.6	2.0~3.0	4.0~4.8	5.8~6.5	6.8~7.2
	10					0.4~0.7	0.55~1.0	1.0~1.9	1.5~2.7	3.0~3.8	3.7~4.2
	12					0.3~0.45	0.4~0.6	0.8~1.4	1.6~1.9	2.4~2.7	3.3~3.6
	16						0.3~0.4	0.6~0.9	1.0~1.2	1.4~1.6	1.7~1.8
	20							0.4~0.6	0.8~0.9	1.0~1.2	1.2~1.6
	22								0.7~0.85	0.9~1.0	1.1~1.2
	25								0.35~0.45	0.6~0.7	0.8~0.9

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Brass (N₂)	1			8.0~12	12~18	20~32	25~30	45~55	45~55	45~55	45~55
	2			3.5~5.0	6.0~8.5	9.0~11	10~13	25~35	27~35	33~40	36~43
	3			1.5~2.2	2.5~4.0	4.0~6.0	5.0~6.5	12~18	15~18	18~22	23~26
	4			1.0~1.2	1.5~1.8	3.0~4.5	3.0~5.2	8.0~10	12~13.5	15~18	19~22
	5			0.6~0.8	0.8~1.2	1.5~2.0	2.0~3.0	4.5~6.0	9.0~12	14~16	17~19
	6				0.4~0.5	1.0~1.6	1.4~2.0	3.0~4.0	7.5~9.5	10~12.5	13~15
	8					0.5~0.6	0.7~0.8	1.6~2.2	4.0~4.8	5.8~6.5	6.8~7.2
	10						0.2~0.3	0.8~1.2	1.5~2.7	3.0~3.8	3.7~4.2
	12								1.6~1.9	2.4~2.7	3.3~3.6
