Model | LX3015FL(4015/6015/4020/6020/6025/8025/12025 optional) | |
Working Area | 3048mm*1524mm | |
Laser Power | 1kw/1.5kw/2kw/3kw/4kw | |
X/Y-axis positioning accuracy | 0.03mm | |
X/Y-axis repositioning accuracy | 0.02mm | |
X/Y-axis Max. linkage speed | 140m/min | |
Leveling accuracy | ≤1.5mm/㎡ | |
Processing plate thickness | 0.8~3mm | |
Coil size | Coil outer diameter | φ1200~φ2000mm |
Coil inner diameter | φ508、φ610mm | |
Coil weight | ≤20t | |
Leveling speed | ≤20m/min |
Solutions for a whole processing system
Coil cutting machine features with integration of automatic uncoiling, leveling, feeding and cutting to ensure the continuity of processing and production, improving processing efficiency. Flow line production and batch processing reduce labor intensity and save manpower. Full enclosure design with compact structure, higher safety and environmental protection during operation; flexible processing and application.

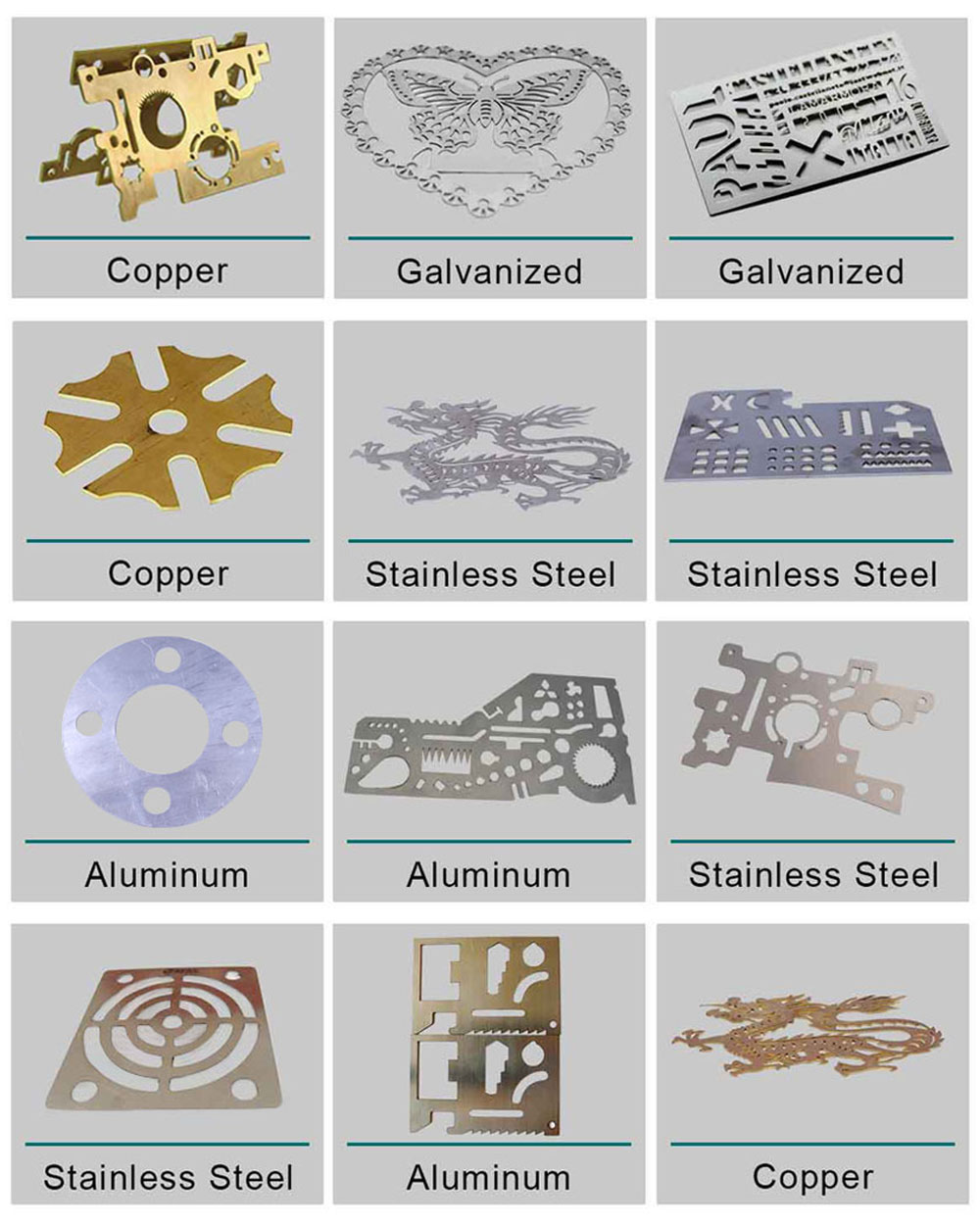

Processing parts range
Coil outer diameter:Φ1200~Φ2000mm
Coil inner diamete:Φ508、Φ610mm
Dimensions:3000mm*1500mm
Automatic feeding of coil material, continuous cutting and batch
processing improve processing efficiency and reduce labor intensity
Uncoiling parts
The uncoiler unwinds the roll material, and the width of the loaded coil material is 600-1250mm; the load is 10000kg.
Leveling parts:
leveling feeder leveling the material, adjustment accuracy of correction amount: ±0.01mm.
Automatic unloading, Intelligent palletizing
Adopt belt conveyor and adjustable width limiting device; the sheet material after processing is automatically transmitted to the unloading mechanism and then palletized by lifting mechanism according to the material width. Finished materials need no manual sorting any more, centralized sorting improves the working efficiency and saves labor cost.
Cast aluminum crossbeam
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.
Automatic unloading material
Hobbing type conveying structure,vacuum chuck automatic unloading the unloading the finish product,automatic stacking of finished products,saving labor and improving efficiency.
Full protection cover
Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.
