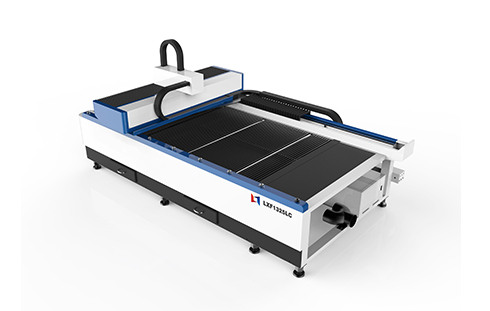

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machineLXF1325LC

Inquire Now Next Product

MACHINE FEATURES

hot sale Fiber CO2 Laser cutting machine 1325

Applied materials and Industry:

Fiber cutting head (Metal Material):

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Fiber cutting head (Metal Industries):

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

hot sale Fiber CO2 Laser cutting machine 1325

CO2 cutting head (Nonmetal Material):

Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.

CO2 cutting head (Nonmetal Industries):

1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc

2.Woodworking: MDF,wooden mould, wood planks,bamboo, density board

3.Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.

4.Clothing: leather,cloth,texitle,shoes,fabric,etc

hot sale Fiber CO2 Laser cutting machine 1325

1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.

2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;

7. Easy Operations: fiber line transmission, no adjustment of optical path.

8.It includes fiber laser cutting head and CO2 laser cutting head,it is good choice if your work materials have metal and nonmetal.

hot sale Fiber CO2 Laser cutting machine 1325

1	Machine Name	Fiber laser cutting machine
2	Model	LXF1325LC
3	Laser machine cutting area	2500x1300mm
4	Fiber Laser PowerCO2 Laser Power	500w/750w/1000W60/80/100/130/150/280/300W
5	Laser wave length	1080nm
6	Transmission system	Imported ball screw
7	X.Y axis location accuracy	±0.01mm
8	X.Y axis repeat location accuracy	±0.01mm
9	X.Y axis max moving speed	30m/min
10	Max cutting speed	1--16m/min
11	Cutting thickness	0.2-3mm stainless steel/0.2-4mm steel
12	Application Material	Metal sheetNonmetal:Wood/MDF/Acrylic/Stone and so on.
13	Advantages	Fiber add CO2 style
14	Gross weight	2200KG
15	Net weight	1800KG
16	Machine size	416021901980mm

Hybrid laser mixed laser cutting machine Fiber CO2 metal nonmetal laser cutting machine

Material	thickness mm	80W	100W	130W	150W
		Speed:mm/s
Acrylic	3	20-25	25-30	30-35	35-40
	5	8-12	10-15	12-17	15-21
	8	5-9	6-10	8-12	10-15
	10	3-6	4-7	5-8	7-11
	15	1.5-3	2-4	3-5	4-7
	20	0.5-1.5	0.7-2	1-3	1.5-4
	25	0.2-0.5	0.3-0.8	0.41	0.8-1.8
	30	/	0.3	0.3-0.5	0.5-0.8
	35	/	/	0.2	0.1-0.4
	40	/	/	/	0.1
MDF	3	15-20	18-23	20-25	25-30
	5	10-13	10-15	15-18	18-21
	10	3.5-5	5-7	6-9	9-12
	15	/	2.5	3-4	5.5-7
	18	/	/	/	4
Plywood	3	18-20	20-25	28-30	33-35
	5	10-15	18-20	22-25	28-30
	10	6-8	10-12	13-15	17-20
	15		5-8	8-11	13-15
Leather	1	25	25-30	35-40	40-45

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Carbon Steel(O₂)	1	7.0~8.0	7.0~9.0	7.0~11.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0
	2	4.0~5.0	5.0~6.0	5.0~6.5	5.0~6.5	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0
	3	2.0~2.5	2.5~3.0	2.8~3.8	3.0~4.6	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0
	4	1.5~2.0	2.0~2.4	2.5~3.2	2.8~4.0	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2
	5	1.2~1.5	1.5~1.8	1.8~2.5	2.2~3.2	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6
	6	1.0~1.4	1.4~1.6	1.6~2.2	2.0~2.8	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0
	8		1.0~1.2	1.1~1.5	1.4~2.0	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4
	10		0.75~0.85	1.0~1.2	1.1~1.4	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8
	12		0.6~0.7	0.9~1.0	0.9~1.2	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5
	16				0.6~0.75	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
	20					0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75
	22					0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65
	25					0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Stainless Steel(N₂)	1	10~12	15~18	10~15	35~50	45~55	45~55	45~55	45~55	45~55	45~55
	2	2~4.0	4.5~6.0	5.0~7.0	10~15	15~23	18~27	20~35	23~37	26~40	28~43
	3	0.7~2.0	2.0~2.4	3.0~4.0	5.0~7.0	7.0~11.0	10~15	15~20	19~24	23~28	27~32
	4		1.0~1.5	2.0~2.8	3.5~4.5	4.0~6.0	5.0~7.5	10~14	14~17	18~22	22~26
	5		0.75~0.85	1.2~1.7	1.8~2.5	2.5~4.0	4.0~5.0	8.0~12.0	11~14	14~17	16~18
	6			0.7~1.0	0.7~0.8	2.0~3.2	3.0~4.0	6.0~8.0	8.0~9.5	9.5~11.0	10.5~12.0
	8			0.5~0.7	0.5~0.6	1.2~1.8	1.5~2.6	3.5~4.0	5.0~5.5	6.5~7.0	7.5~8.0
	10					0.7~0.9	0.7~1.3	1.8~2.2	2.5~3.0	3.4~3.9	4.0~4.5
	12					0.3~0.4	0.4~0.6	1.2~1.5	1.8~2.1	2.6~3.1	3.3~3.6
	16						0.3~0.5	0.8~1.2	1.5~1.8	2.2~2.5	2.7~3.0
	20						0.3~0.5	0.6~0.8	1.0~1.3	1.7~2.0	2.2~2.5
	22							0.3~0.4	0.6~0.75	1.0~1.2	1.4~1.6
	25								0.3~0.5	0.4~0.6	0.6~0.8

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Aluminum (N₂)	1			10~15	30~45	30~38	35~40	45~55	45~55	45~55	45~55
	2			5.0~6.0	10~15	12~16	13~22	20~30	27~35	33~40	36~43
	3			2.5~3.5	5.0~7.0	6.5~8.0	7.0~13	13~18	15~18	18~22	23~26
	4			1.4~2.0	3.5~5.0	3.5~5.0	4.0~5.5	10~12	12~13.5	15~18	19~22
	5			0.8~1.0	2.0~3.0	2.5~3.5	3.4~4.0	5.0~8.0	9.0~12	14~16	17~19
	6			0.5~0.6	1.5~2.0	1.8~3.0	2.2~3.5	4.0~6.0	7.5~9.5	10~12.5	13~15
	8				0.5~0.6	0.9~1.3	0.9~1.6	2.0~3.0	4.0~4.8	5.8~6.5	6.8~7.2
	10					0.4~0.7	0.55~1.0	1.0~1.9	1.5~2.7	3.0~3.8	3.7~4.2
	12					0.3~0.45	0.4~0.6	0.8~1.4	1.6~1.9	2.4~2.7	3.3~3.6
	16						0.3~0.4	0.6~0.9	1.0~1.2	1.4~1.6	1.7~1.8
	20							0.4~0.6	0.8~0.9	1.0~1.2	1.2~1.6
	22								0.7~0.85	0.9~1.0	1.1~1.2
	25								0.35~0.45	0.6~0.7	0.8~0.9

Material	Thickness（mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness（mm）	Cutting Speed(m/min)
Brass (N₂)	1			8.0~12	12~18	20~32	25~30	45~55	45~55	45~55	45~55
	2			3.5~5.0	6.0~8.5	9.0~11	10~13	25~35	27~35	33~40	36~43
	3			1.5~2.2	2.5~4.0	4.0~6.0	5.0~6.5	12~18	15~18	18~22	23~26
	4			1.0~1.2	1.5~1.8	3.0~4.5	3.0~5.2	8.0~10	12~13.5	15~18	19~22
	5			0.6~0.8	0.8~1.2	1.5~2.0	2.0~3.0	4.5~6.0	9.0~12	14~16	17~19
	6				0.4~0.5	1.0~1.6	1.4~2.0	3.0~4.0	7.5~9.5	10~12.5	13~15
	8					0.5~0.6	0.7~0.8	1.6~2.2	4.0~4.8	5.8~6.5	6.8~7.2
	10						0.2~0.3	0.8~1.2	1.5~2.7	3.0~3.8	3.7~4.2
	12								1.6~1.9	2.4~2.7	3.3~3.6
