[LXF6060]High Precision mini small fiber laser cutting machine LXF6060 with linear motor ball screw transmission 500w 750w 1000w 1500w

Key Advantages

1 Strong stability, high precision, 20 years without deformation

Adopted carbon structural steel with good toughness, ductility, welding performance and thermal processing;Stress annealing and vibration aging treatment eliminate the stress in welding and processing of machine bed, the machine bed precision is long-lasting.

2 Marble countertop is more professional

Adopting marble countertop, high precision, low linear expansion coefficient; no rust, easy to maintenance; acid and alkali resistance; high hardness, wear resistant, antimagnetic; ensuring the stability of accuracy during high-speed operation, improving processing performance.

3 Linear motor makes cutting more precise

The equipment adopts ultra-high precision linear motor module, compact structure and low power loss. Without mechanical contact, friction force is smaller. Smooth movement, high position accuracy and repositioning accuracy, higher speed and acceleration. Fast reaction speed, high sensitivity, excellent follow-up performance, safe and reliable, long service life, low motion noise. High efficiency and cutting quality, suitable for ultra precision cutting.

4 Dual Rail and Dual Driver Design

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.

5 Cast aluminum crossbeam

After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy.

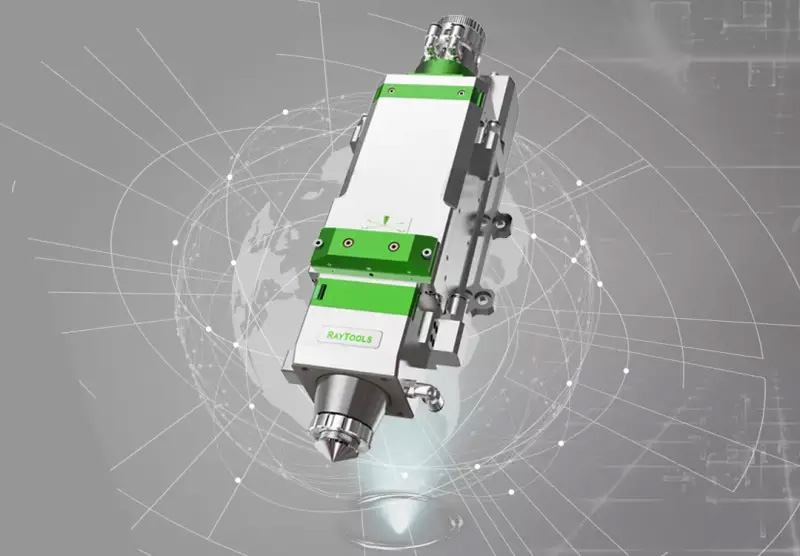

6 Intelligent Autofocus

The high efficiency cooling:

Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture:

Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:

Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

 7 Safety and No Pollution

•  With a fully enclosed design;

•  The observation window adopts an European CE Standard laser protective glass;

•  The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
