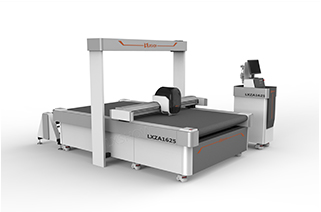

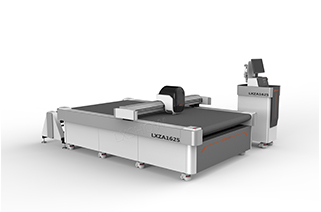

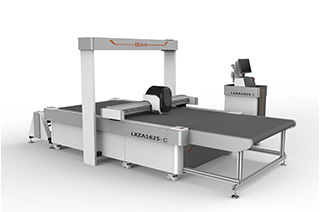

CNC vibrating knife cutter machine for cutting diameter 1mm leather hole and 1mm Plexiglass hole

CNC vibrating knife cutting machine is equipped with a variety of tools, such as vibrating knife, drag knife, round knife (optional active wheel knife, pneumatic round knife) and drawing pen tools, rubber pad vibrating knife cutting machine, according to different materials to achieve different Effects such as writing and drawing, dashed cutting, half cutting, full cutting, etc. For automotive foot pads and other industries, it can cut a variety of flexible materials, such as sponge composite leather, traveller foot pads, leather, soft glass, silicone, rubber materials, etc.

One device can save 2-3 workers. A set of products saves 20 cm of material. The machine forms and feeds paper automatically. Save time, save fabric, save labor.

Machine head design: Adopting interchangeable tools, non-fixed welding integration of the tool holder, which can be easily replaced and added with different functions according to actual work needs and expansion of business scope

Working mode: servo motor drive screw control mode. It can be preset to store the cutter depth with the computer according to different needs. Compared with the old-fashioned pneumatic machine head, it completely says goodbye to the history of manually adjusting the knife depth based on experience, convenient digital trimming, and completely solves the problem of pneumatic pressure with pressure fluctuations. Temperature and time.

Integrated control card: The controller has been upgraded from the era of computer motherboards to the era of high-performance integrated circuit controllers. It can be connected to any ordinary computer (including laptops) without the need for a special high-end computer. Replace the ordinary computer to operate the equipment, completely eliminate the paralysis of the cutting equipment due to the failure of the computer link;

Positioning function: Configure graphics and cursor positioning functions to easily locate the starting cutting position of the material.

Anti-interference: Considering the complex electromagnetic environment factors that customers actually use, they are specially equipped with anti-interference operation screens, which are not affected by the surrounding electronic environment when working, and do not waste the screen;

Rotary table: The RM series equipment adopts advanced and mature rotary table design. The platform is customizable with wide widths and unlimited theoretical cutting lengths. It adopts a vacuum suction design with super strong wind and strong suction (no more small sample adsorption).

Data interface: The data interface is a network interface, which can realize remote upgrade and maintenance, fast transmission speed and long distance, can be transmitted with multiple computers at the same time, can be remotely controlled and upgraded, etc. Compared with the old-fashioned serial port, parallel port, PCI interface is more advanced, more convenient;

Zero-setting device: optional zero-setting device is used to quickly check whether the material is neat or out of bounds;

Rewinding device: optional automatic rewinding device for coils can solve the problem of time-consuming and laborious rewinding;

Next is video of CNC vibrating knife cutting machine:

https://youtu.be/w_QmUQDEaRk

https://youtu.be/W6drSYKC9wo

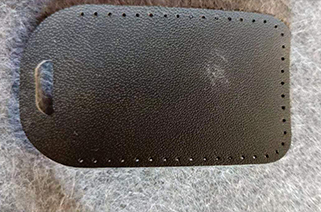

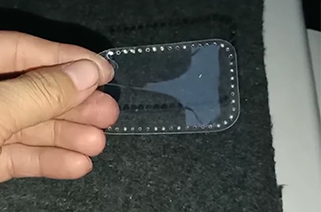

Finished samples show:
